X2 marine 15
Descriptif:

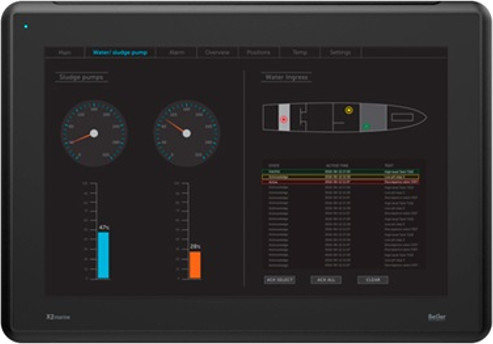

IHM tactile marine 15,4", 1280x800 pixel TFT-LCD, résistif, dimming optimisée, jusqu'à 0,5 CD/m2, CPU Dual Cortex-A9 1.0GHz, 1GB RAM, 2GB SSD(eMMC), 2xLAN, 1x9pin DSUB, 2xUSB, SD, 24VDC, -10 to +60C en opération, IP65 face avant, CE, FCC, KCC, UL, homologation marine DNV GL, KR, LR, ABS, CCS, BV, NK
Fabricant: BEIJER
Fonctionne avec le logiciel:
- iX Developper
Taille d'écran / couleur / pixels: 15,4" / LED backlight / 1280 × 800 pixels
Processeur: i.MX6DualLite, Dual Cortex-A9 1.0GHz 512kBL2cache
Mémoire d'application FLASH:
- 2GB SSD(eMMC), 1.5GB free for application
Mémoire principale RAM: 1GB
Dimension lxHxP (mm): 410 x 286 x 61mm VESA 75 X 75
Dimension de la découpe lxH (mm): 394 x 270mm
Caractéristique: Température de fonctionnement : -10°C à +60°C / Choc : 15g, half-sine, 11ms according to IEC60068-2-27 / Vibration : 1g, according to IEC 60068-2-6, Test Fc / Garantie : 2 ans / Alimentation : 24 V DC (18 to 32 VDC)
Protection (avant/arrière): IP65/IP20
Connectique:
- Ethernet x 2
- COM1
- SD Card
- 2 x USB 2.0
Documentation technique: DTX_X2marine15.pdf
